The Quad Pod Provides High Power Flood Lighting for the Event Industry

Quad Pod For Events

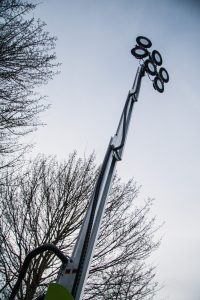

The Quad Pod Portable Lighting System is a fantastic solution to provide floodlighting for a range of events. Run from either generators or mains power the Quad Pod can be positioned wherever lighting is required and is able to be set up quickly by one person in under 2 minutes.

The Quad Pod can be used to either floodlight the event itself or support the event through floodlighting carparks, Walkways, Toilet areas or camping areas. It is highly mobile, compact for storage, low cost to run and simple to operate.

The Quad Pod has low pressure pneumatic tyres that are particularly suitable for manoeuvring the product over grass or uneven surfaces. The LED head options give the user instant, flicker free, high power LED light that can be focused to illuminate the required area either as a 180 degree directional light or a full 360 degree area floodlight.

The quad pod is a high power mobile outdoor floodlighting solution
specifically designed for a wide range of applications including:




Any Outdoor Events

Why is the Quad Pod so popular for events?

Highly flexible light

light output can be focused from 180 degrees directional floodlighting to 360 degree area lighting.

Robust and ruggedized structure.

Suitable for use in outdoor environments

Independently adjustable legs

Copes with uneven surfaces

High power LED lights

25,000 lumens of light per 200W light head – instant flicker free light.

Low pressure wheel/tyre option

Suitable for manoeuvring over many different terrains.

Easy to manoeuvre to any location without mechanical assistance.

Designed to fit through a standard sized door – compact for manoeuvring through small spaces


Total wattage max 1200W

(6 x LED heads) = low load requirement.

Petrol or Diesel Generators

Only requires 1.2kw therefore can be used with compact 2kW generators

Low cost to run

1.2kw = approximately £0.13 hourly cost in electricity to run on mains power.


Integrated manual winch with automatic brake

Allows safe raising / lowering of the mast

Automatic mast raise safety interlock

Prevents chance of mast lowering unless correct operation used

Simple to operate with RCD electrical safety isolation

Instant power off should an electrical problem occur.

Fast Deployment In 2 Minutes

The rubber strap and catch system allows rapid release and securing of the Quad Pod legs. The addition of a Friction grip on the Leg tie bars allows quick tension of legs even if ice or mud is present.

Flexible Area Lighting

5m Height, 4 x MH Heads 165Kg  192 x 77 x 70cm 237 x 237 x 554cm
5m Height, 6 x MH Heads  177Kg 192 x 77 x 70cm 237 x 237 x 554cm
6.5m Height, 4 x MH Heads 192Kg 192 x 77 x 75cm  377 x 377 x 657cm
6.5m Height, 6 x MH Heads 204Kg 192 x 77 x 75cm 377 x 377 x 657cm
5m Height, 4 x LED Heads 161Kg 192 x 77 x 70cm 237 x 237 x 554cm
5m Height, 6 x LED Heads 171Kg 192 x 77 x 70cm  237 x 237 x 554cm
6.5m Height, 4 x LED Heads 188Kg  192 x 77 x 75cm 377 x 377 x 657cm
6.5m Height, 6 x LED Heads 198Kg 192 x 77 x 75cm 377 x 377 x 657cm

The Quad Pod portable lighting solution can be powered in three ways:

  • AC mains power supply (110V – 250V AC)
  • Petrol or diesel generators


K50/MH4 5 metres 4 Metal Halide
K50/MH6 5 metres 6 Metal Halide
K65/MH4 6.5 metres 4 Metal Halide
K65/MH6 6.5 metres 6 Metal Halide
K50/LED4 5 metres 4 LED
K50/LED6 5 metres 6 LED
K65/LED4 6.5 metres 4 LED
K65/LED6 6.5 metres 6 LED

Extension Leads
Extension leads are available in a variety of lengths to meet customer requirements.

Wheel Options
Two standard wheel options are offered to provide the maximum stability, optimum handling and minimum ground impact on a range of surfaces:

  1. Low profile wheels / tyres – particularly suitable for hard / dry surfaces
  2. Low pressure pneumatic wheels / tyres – particularly suitable for grassed or uneven surfaces and for use in wet conditions


How To Set Up And Take Down The Quad Pod

Quad Pod In Action For Rugby Training

Quad Pod In Action In The UK

Quad Pod In Action In The Bundesliga, Germany
