Quad Pod

Portable Floodlights For Sports

The Quad Pod is a high power mobile outdoor floodlighting solution specifically designed for sports including Rugby, Football and Tennis

Get A Quick Quote
Download Brochure

See Our Portable Floodlights In Action

View the image gallery below

See Our Portable Floodlights In Action

Watch the videos below

Why Do So Many Sports Clubs Choose Our Portable Floodlights?

Cheaper than a permanent floodlight system

No planning permission required

Allows evening training sessions on any sports pitch or area of the sports facility

Highly flexible – easy to manoeuvre to any location

One person deployment system – quick and easy setup

High power LED lights; mains or generator powered

Quad Pod For Football
Quad Pod For Rugby
Quad Pod For Tennis

Need All The Technical Specifications?

Download the brochure now

Download Brochure
[]
1 Step 1
What will my pitch look like & how many lights do I need?

Enter your pitch details and we'll send you a custom light diagram.

Pitch Widthft or m (approx) please specify
Pitch Lengthft or m (approx) please specify
Name
Club/Organisation
Phone
Which sport do you want lighting for?
What do you want lighting for?
Previous
Next

Feature & Benefits

null

Ultra Efficient High Power 200W LED Light Heads

The Quad pod is fitted with the latest generation of high performance LEDs. Each 200W head offers an impressive 24,000 lumens of 6400K LED light. Total for 6 head Quad Pod up to 144,000 lumens.

Integrated manual winch with automatic brake

Slack rope protection system to prevent the winch from being operated in an unsafe condition

Allows safe raising / lowering of the mast

Individual, fully adjustable light heads

Allows light to be adjusted to suit any application including a 360° light pattern

RCD electrical safety isolation

Instant power off should an electrical problem occur

Independently adjustable legs

Copes with uneven surfaces

Fitted with friction grips to allow quick tension even if ice or mud is present.

Built in level gauge

Ensures vertical mast raise
null

Sports Optimised LED optics generates maximum light directed to playing surface achieving higher uniformity for users.

The Quad Pod LED heads employ precision secondary optimal lensing to ensure that the maximum yield from the LED light source is directed to where it is required at the playing surface. The lens is designed to work to optimise the light levels both in brightness and uniformity at the playing surface.

Mast Safety System

Mast safety interlock system to prevent the mast from being raised until the last stabiliser leg has been deployed.

Automatic stowage lock – Prevents mast movement in storage or transport.

Automatic mast raise safety interlock

Prevents chance of mast lowering unless correct operation used

One person quick deployment system in under 2 minutes

Quick and easy setup

Fork lift pockets and tie down points

Allow maximum load out and simple handling at depots and destination.

Large low pressure footprint

Gives non-marking safe secure base

Weights & Dimensions

Product CodeMast HeightNumber Of HeadsTechnologyWeightClosed DimensionsOpen Dimensions
K50/MK2-LED45m4LED210Kg1030 x 850 x 1970mm2370 x 3100 x 5315mm
K50/MK2-LED65m6LED229Kg1030 x 850 x 1970mm2370 x 3100 x 5315mm
K65/MK2-LED46.5m4LED220Kg1030 x 850 x 1970mm2370 x 3100 x 6840mm
K65/MK2-LED66.5m6LED239Kg1030 x 850 x 1970mm2370 x 3100 x 6840mm
K50/MK2-MH45m4Metal Halide165Kg1920 x 770 x 700mm2370 x 2370 x 5540mm
K50/MK2-MH65m6Metal Halide177Kg1920 x 770 x 700mm2370 x 2370 x 5540mm
K65/MK2-MH46.5m4Metal Halide192Kg1920 x 770 x 750mm3770 x 3770 x 6570mm
K65/MK2-MH66.5m6Metal Halide204Kg1920 x 770 x 750mm3770 x 3770 x 6570mm

Product Options

The Quad Pod portable lighting solution can be powered by:

  • AC mains power supply (110V – 250V AC)
  • Petrol or diesel generators

Accessories

Extension Leads
Extension leads are available in a variety of lengths to meet customer requirements.

Wheel Options
Two standard wheel options are offered to provide the maximum stability, optimum handling and minimum ground impact on a range of surfaces:

  1. Low profile wheels / tyres – particularly suitable for hard / dry surfaces
  2. Low pressure pneumatic wheels / tyres – particularly suitable for grassed or uneven surfaces and for use in wet conditions

wheel-options

Videos

How To Set Up And Take Down The Quad Pod

Quad Pod In Action For Rugby Training

Quad Pod In Action In The UK

Quad Pod In Action In The Bundesliga, Germany

Funding Options

There are grants available from various organisations that could be applied to in order to assist in the purchase of the Quad Pod Mobile lighting products. Below are some links to possible relevant grants from funding bodies.

Football Foundation Portable Floodlight Grant

Portable floodlights are a cost-effective way of allowing your organisation to train during the hours of darkness using your own facilities. The Premier League and The FA Facilities Fund Small Grants Scheme will accept applications for new portable floodlights from a reputable dealer.
sport england

Sport England

We use National Lottery funding to make awards of between £300 and £10,000 to not-for-profit organisations to help more people play sport.

Football Foundation

The Premier League and The FA Facilities Fund Small Grants Scheme awards grants of up to £10,000 for the provision of capital items, or to refurbish/improve existing facilities.

Welsh Rugby Union

The WRU Facilities Grant is available for all clubs to apply for. The panel will consider projects to support both on and off field initiatives that benefit rugby and safeguard the sustainability of the game.

Sport Wales

If you want to make a big difference to your community, applying for a Sport Wales grant could not be simpler!

Midcounties Cooperative

If you are part of a community group or organisation, you could apply to us for funding. You must be a member of The Midcounties Co-operative and your group must be working in a community where there is a Midcounties store. You can apply for a grant from us of up to £2,000.

Sport Scotland

Sport Scotland’s main facility funding programme that Invests Scottish Government and National Lottery funding exclusively into sports facilities
Get A Quick Quote
Download Brochure

Ritelite Quad Pod Used In The Bundesliga

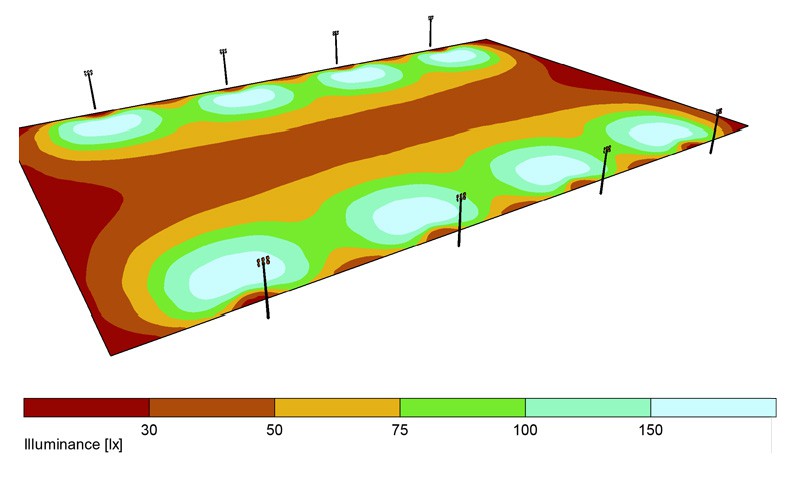

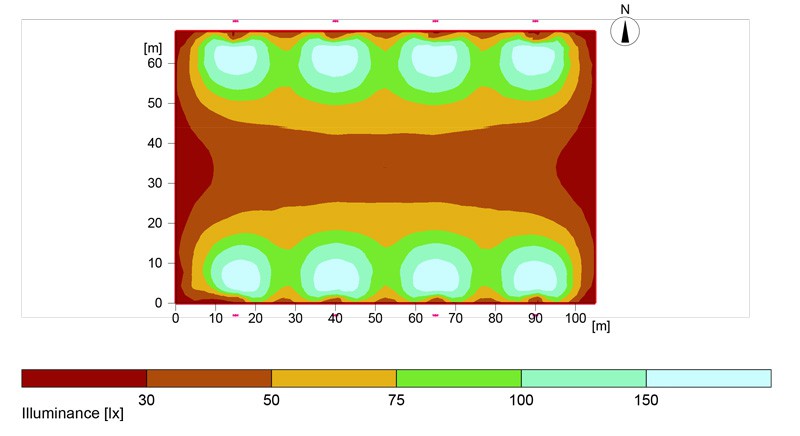

Ritelite have recently supplied 8x LED mobile sports floodlighting towers to a German 1st Division Bundesliga football club for use on a full size 1st team training pitch.

Ritelite Mobile Lighting Towers Light the way for a new Rolls Royce video
Ritelite’s K50 Quad Pods  have recently been used to light the shoot for the new Rolls Royce “Wraith” Promotional video that was shot in the Queen Elisabeth Olympic Park, London.
